DR.KAISER德国凯撒金刚石滚轮
DR.KAISER德国凯撒精密和金刚石在现代化加工技术中成为一体。革新的金刚石工具工艺,使精密和经济地加工制造,这个全球性的要求,谐调一致起来。德国DR. KAISER金刚石工具厂从事于下列的工作:修整和成型普通的砂轮以及金刚石和CBN(氮化硼)砂轮用高精度的金刚石和CBN砂轮磨削保护敏感件预防磨损用金刚石和CBN工具切削金刚石修整盘的安装,驱动和控制。
DR.KAISER 产品范围：
金刚石滚轮，砂轮，修整主轴，精密金刚石工具等
一， DR.KAISER修整主轴C系列，具有天然金刚石或CVD金刚石的CNC修整盘用于修整常规砂轮。可提供用于修整超级磨料砂轮的自锐旋转修整器。
修整主轴C系列型号及特点：
1. 修整主轴C72FC2C，1,500-7,000 rpm，350 V / 2.7 A / 0.9千瓦
2. 修整主轴C58-F3-143-20-15， 220V交流/ 0.2KW / 0.8A，15,000 rpm
3. 修整主轴C58FASD，220V交流/ 0.2KW / 0.8A，30,000 rpm

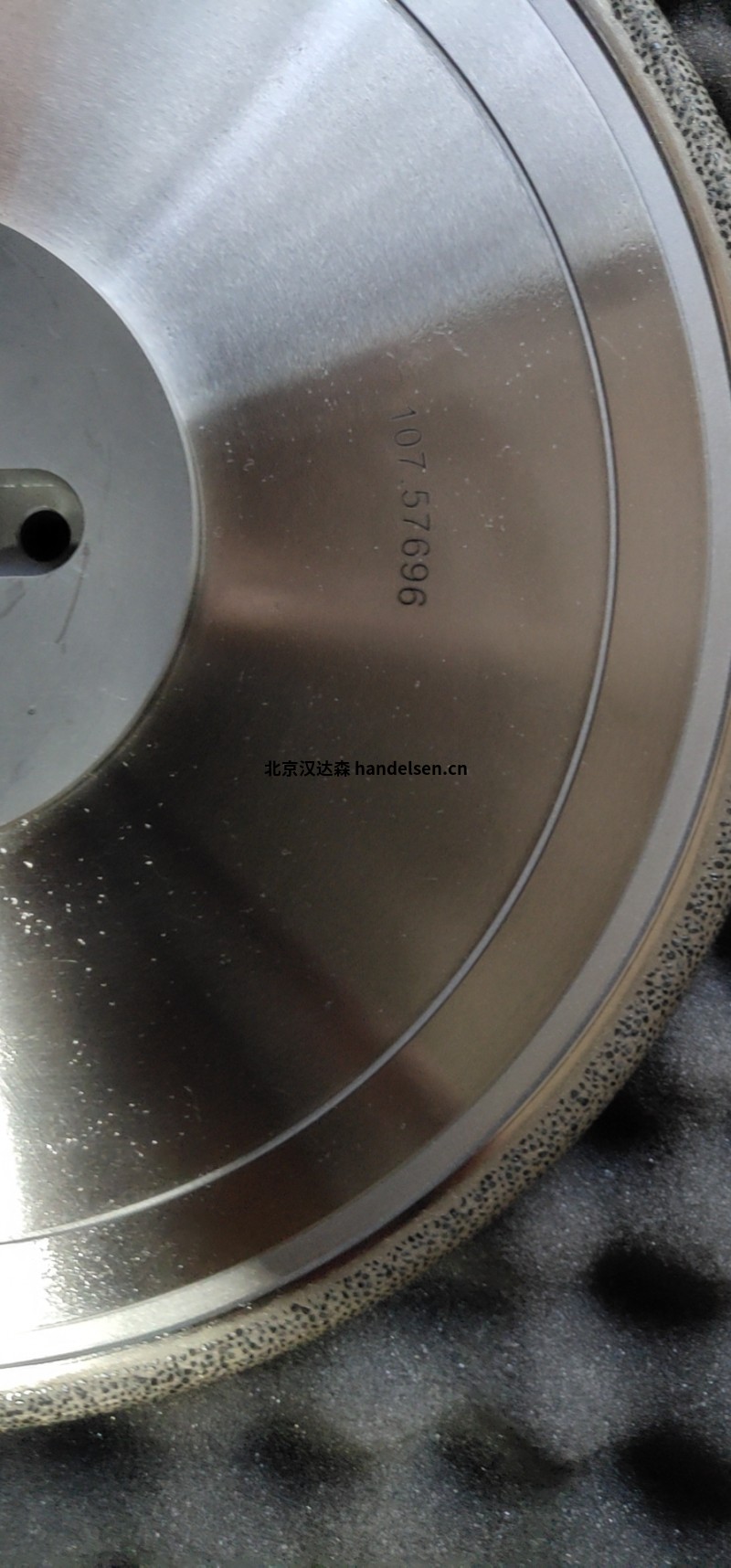

二，DR.KAISER金刚石修整轮R系列，固定式修整工具可用于通过机床的CNC功能在砂轮上生成简单的直线轮廓，以及在复杂的形状上生成轮廓。
金刚石修整轮R系列型号及特点：
4. 金刚石修整轮RI19-G3513-150-1.5-6-R0.75-52-30-1M2，浸渍版D356，精细平衡，轮廓磨R0.75，基体支架可重复使用
5钻石修整轮组RGF523-GC-M2-EW20-R1000-1,7-W0°40'，双锥版，可用于LUREN修整器，电正版，在AD上进行CVD放大，完全制造
二， DR.KAISER金刚石修整轮NC系列, 金刚石涂层, 金刚石还具有良好的摩擦和滑动性能，并且可以具有出色的表面质量。
金刚石修整轮NC系列型号及特点：
6. 金刚石修整轮NC21-C-130-R0.15-W28-72-10-TK，金刚石涂层“ CG”(CVD，可重新研磨)，精细平衡
7金刚石修整轮NC59-G-101.6-R2.54-W8-50.8-46.71-TK-1M1 / 2，金刚石涂层“ G”(分散的金刚石)，精细平衡
8. 金刚石修整轮NC10-C-180-1,1-3-R0,55-52-20，CVD金刚石涂层“ C”(可多次研磨)，钻石底座高度3mm，精细平衡
9. 金刚石修整轮NC63-C-110-F0.38-R0.3-W3-40-10-TK，金刚石涂层“ C”(CVD，可多次研磨)，精细平衡
10.金刚石修整轮NC90-G-160-R2-25-25,4-TK，钻石涂层“ G”，附测试报告
11. 金刚石修整轮NC30-G-200-F3,17-R1-W10-53-20，钻石涂层“ G”(散布的钻石)
12. 金刚石修整轮NC88-CG-120-32-1,5-R1-W85-35-32-TK，金刚石涂层“ CG”(CVD，可重新研磨)，精细平衡，带测试报告
四，DR.KAISER陶瓷结合的金刚石砂轮SK系列，用于齿轮生产的电镀修整工具，不久之后又生产用于内部生产的电镀砂轮。为了在内部生产修整工具而使用优化的磨削工具。
主要产品
DR. KAISER 刀具
DR. KAISER 高精密金刚石工具
DR. KAISER CBN砂轮
DR. KAISER 修整工具
DR. KAISER 磨削工具
DR. KAISER 砂轮
DR. KAISER 修整主轴
DR. KAISER 托架板
DR. KAISER 工件导向
DR. KAISER 顶尖
DR. KAISER 测量工具
DR. KAISER 电镀驱动器
DR. KAISER 修整碟
DR. KAISER 静态修整器
型号示例
DR. KAISER NC88-G-200-13-2,5-R1,5-W70-52-36 Nr:024 4100 022 20
DR. KAISER NC58-CG-120-R1-W85-35-47-TK Nr:031 4100 303 20
DR. KAISER NC10-G-160-4-3-R2-25-25-TK Nr:39202-4421-01-003-1
DR. KAISER NC90-G-160-R2-25-25,4-TK Nr:39205-4421-01-003
DR. KAISER 1.100003
DR. KAISER 1.100024
DR. KAISER 1.100212
DR. KAISER 1.100244
DR. KAISER 1.100451
DR. KAISER 1.101275
DR. KAISER 1.101276
DR. KAISER 1.10128
DR. KAISER 3.44021
DR. KAISER 1.013519 R222-GK-80-10-3,42-R3,09-40-22-TK
DR. KAISER 1.015263 R299-HGC-130-43,4-16,13-50-45-TK-2M
DR. KAISER 1.015264 R299-HGC-150-53,1-24,22-50-45-TK-2M
DR. KAISER 1.040175 RI60-G3012-75-1-6-W7-30-22-TK-W20
DR. KAISER 1.040347 RI42-G4215-110-1-4-40-10-TK
DR. KAISER 1.040509 RI68-G4215-175-2-4-R0,5-F2-75-12-TK-W45
DR. KAISER 1.040674 RI68-G4215-175-2-4-W15-R0.5-W15-75-12-TK/1
DR. KAISER 1.040860 RI64-G4215-110-1,6-6-F2-75-20-TK-W45
DR. KAISER 1.041465 RI80-G4215-175-3-10-R1-40-12-TK
DR. KAISER 1.041617 RI19-G3513-150-1,5-6-R0,75-52-30-1M2
DR. KAISER 1.041821 RI68-G4215-110-1.5-5-F1-F0.5-75-39-TK-W45
DR. KAISER 1.041844 RI64-G3513-120-0,8-6-F2-40-12-TK-W45
DR. KAISER 1.042127 NC40-C-125-R0,5-W45-30-16-TK
DR. KAISER 1.042127 RI29-GC4215-120-1,5-5-40-12-TK-1M2
DR. KAISER 1.042182 RI29-G3515-100-1-4-40-10-TK-1M2
DR. KAISER 1.042427 RI68-G4215-110-1,6-6-75-42-TK
DR. KAISER 1.070000 NC50-H-100-R1-W70-40-21
DR. KAISER 1.070142 NC90-H-130-6-2-R0,5-40-16-TK
DR. KAISER 1.070169 NC40-C-75-R0,3-W40-40-10
DR. KAISER 1.070228 NC50-H-130-R0.5-W70-40-21
DR. KAISER 1.070266 NC90-H-170-6-2-R0,5-40-16-TK
DR. KAISER 1.070275 NC50-H-50-R0,3-W70-20-20-TK
DR. KAISER 1.070349 NC10-G-130-6-3,5-R3-10-15
DR. KAISER 1.070510 NC50-H-75-R1-W25-40-28
DR. KAISER 1.070558 NC10-G-104-6-4-R3-45-10-TK
DR. KAISER 1.070625 NC90-H-150-6-2-R0,5-40-16-TK
DR. KAISER 1.070733 NC81-C-114,3-3,17-1,5-R0,05-25,4-9,52-TK
DR. KAISER 1.071061 NC50-H-100-R0,65-W55-40-15-TK
DR. KAISER 1.071093 NC10-G-200-4-3-R2-25-25-TK
DR. KAISER 1.071148 NC88-G-240-18-2,5-R1,5-W70-52-48
DR. KAISER 1.071211 NC10-G-160-4-3-R2-25-20-TK
DR. KAISER 1.071444 NC40-H-216-R0,5-W68-164-39,8-TK
DR. KAISER 1.071476 NC50-C-100-R0,5-W70-40-21-TK
DR. KAISER 1.071483 NC83-GC-140-5-0,65-R0,35-W0,06-40-10-TK
DR. KAISER 1.071540 NC59-GC-71,58-R2,54-W6-50,8-46,71-TK-1M1
DR. KAISER 1.071756 NC88-G-160-13-2,5-R1,5-W70-52-36
DR. KAISER 1.071783 NC10-G-160-4-3-R2-25-25-TK
DR. KAISER 1.071785 NC10-G-160-2-2-R1-25-25-TK
DR. KAISER 1.072150 NC10-G-180-4-3-R2-25-25-TK
DR. KAISER 1.072205 NC10-G-200-3-2,5-R1,5-40-16-TK
DR. KAISER 1.072333 NC20-C-100-R0,15-W40-40-10-TK
DR. KAISER 1.072488 NC22-C-80-R0,25-W13,5-K21-10
DR. KAISER 1.072550 NC59-G-101,6-R2,54-W8-50,8-46,71-TK-1M1/2
DR. KAISER 1.072597 NC90-G-160-R2-25-25,4-TK
DR. KAISER 1.072611 NC88-CG-160-13-2-R1,5-52-36
DR. KAISER 1.072618 NC81-CG-200-5-0,8-80-14
DR. KAISER 1.072661 NC20-C-130-R0.15-W40-72-10-TK
DR. KAISER 1.072707 NC88=CG-160-13-1,5-R1-52-36
DR. KAISER 1.072795 NC10-G-80-10-6-R5-30-10
DR. KAISER 1.072946 NC88-CG-200-13-1,5-R1-52-36
DR. KAISER 1.073160 NC58-G-120-R1,5-W80-35-47-TK
DR. KAISER 1.073299 NC81-C-120-1-1,5-R0,1-40-10-TK
DR. KAISER 1.073535 NC80-C-100-4-1,5-R0,5-40-10-TK
DR. KAISER 1.073569 NC20-C-140,5-R0,25-W30-40-10-TK
DR. KAISER 1.073961 NC10-G-130-6-3,5-R3-20-15
DR. KAISER 1.073979 NC50-C-50-R0,3-W70-20-20-TK
DR. KAISER 1.074095 NC90-C-130-3-1,5-R0,5-40-16-TK
DR. KAISER 1.074246 NC20-C-120-R0.5-W10-40-TK
DR. KAISER 1.074301 NC90-H-190-6-2-R0,5-40-26,7-TK
DR. KAISER 1.074467 NC58-CG-120-R1-W85-35-47-TK
DR. KAISER 1.074542 NC20-C-110-R0,25-W40-25,4-20
DR. KAISER 1.074577 NC50-G-101,6-R2,54-W12-50,8-46,71-V
DR. KAISER 1.074613 NC60-C-115-F0,7-F0,3-R0,15-R0,1-40-10-TK
DR. KAISER 1.074730 NC20-C-150-R0,3-W20-52-30-TK
DR. KAISER 1.074928 NC88-G-130-10-3-R2-22-40
DR. KAISER 1.074980 NC30-C-100-F0,7-R0,3-W40-40-10-TK/1
DR. KAISER 1.075141 NC90-C-170-6-1,5-R0,5-40-16-TK
DR. KAISER 1.075236 NC21-C-130-R0,15-W28-72-10-TK
DR. KAISER 1.075244 NC40-C-125-R0,3-W45-30-16-TK
DR. KAISER 1.075325 NC88-G-160-13-2,5-R1,5-W70-52-36/1
DR. KAISER 1.075587 NC80-C-100-1.5-1.5-R0.2-63-20
DR. KAISER 1.075602 NC90-C-80-R0,25-W60-25-21,4
DR. KAISER 1.075612 NC90-H-160-6-2-R0,5-25-25-TK/3
DR. KAISER 1.075703 NC21-C-101,6-R0,2-W20-22,22-10
DR. KAISER 1.075716 NC88-CG-160-10-2-R1,5-30-49-TK
DR. KAISER 1.075717 NC88-CG-120-32-1,5-R1-W85-35-32-TK
DR. KAISER 1.075909 NC20-C-150-R0,5-W10-40-15-TK
DR. KAISER 1.076174 NC10-G-180-4-3-R2-25-25-TK/1
DR. KAISER 1.076225 NC93-C-100-R0,3-W80-40-17-TK
DR. KAISER 1.076367 NC40-C-125-R0,5-W45-30-16-TK
DR. KAISER 1.076379 NC63-C-120-F1-R0.125-W70-W10-40-12-TK
DR. KAISER 1.076916 NC50-C-140-R0,5-W40-35-20,8
DR. KAISER 1.077121 NC20-C-110-R0.5-W50-52-12-TK
DR. KAISER 1.077517 NC90-H-101,6-6-2-R0,5-12,7-9,52-TK
DR. KAISER 1.077820 NC20-C-150-R0,25-W25-52-30
DR. KAISER 1.077886 NC63-C-110-F0,38-R0,3-W3-40-10-TK
DR. KAISER 1.077915 NC58-CG-120-R1-W85-35-47-TK/1
DR. KAISER 1.077915 NC58-CG-120-R1-W85-35-47-TK/2
DR. KAISER 1.077977 NC10-G-160-3-2,5-R1,5-52-36
DR. KAISER 1.078529 NC10-C-101,6-0,8-1,5-R0,4-12,7-9,52-TK
DR. KAISER 1.078582 NC90-H-80-6-2-R0,5-12,7-9,52-TK
DR. KAISER 1.082067 NC30-C-100-F0,7-R0,3-W40-40-10-TK
DR. KAISER 1.090004 C72-7-F-250-40-10-TK56
DR. KAISER 1.090013 C72-FA-250-40-10-TK56
DR. KAISER 1.090110 C58-FK-93-20-4-TK25
DR. KAISER 1.100248 Klemmbock C72F/C72FS/C72FA
DR. KAISER 1.210081 RH41-NCC90-R41-100-40-19-TK
DR. KAISER 1.400396 NCC50-C-110-R0,5-W74-70-16-TK
DR. KAISER 2.220185 RG320-GC-200-M1-3-EW20-TK-V
DR. KAISER 2.220188 RG320-GC-200-M3-7-EW20-TK-V
DR. KAISER 2.220639 RG320-GC-200-M3-6-EW18,5-TK-V
DR. KAISER 2.304611 RGF2001-GC-M2-4,5-EW20-R1500
DR. KAISER 2.304714 RGF804-GC-M4,4-EW20-R2000-4,7-R150
DR. KAISER 2.304970 RGF523-GC-M2-EW20-R1000-1,7-W0°40'
DR. KAISER 2.305880 RGF2003-GC-M1,5-EW17,5-R...-KRN
DR. KAISER 2.305881 RGF2003-GC-M1,5-2-EW20-R...-KRN
DR. KAISER 2.360048 RIG63-G60-310-5-W90-250,2-35-TK
DR. KAISER 3.641373 GD 30495 E Rev. B
DR. KAISER 38002600 RGF30x-GC-M1-3-EW20-Profil
DR. KAISER 38002700 RGF30x-GC-M3-7-EW20-Profil
DR. KAISER 38008800 RGF30x-GC-M3-6-EW20-Profil
DR. KAISER 4.620065 K-KF20-G4215-1,5-6-5-37-MK0-K25,5
DR. KAISER 7.111631 SG301-B06DA-28-3,2-3,5-M1,5-12-5
DR. KAISER 7.111634 SG301-B06DA-40-4-4-M1,58-12-5
DR. KAISER 7.111770 SG301-B06DA-28-3,6-3,5-M1,58-12-5/1
DR. KAISER 7.111771 SG301-B06DA-26-3,6-3,5-M1,5875-12-5
DR. KAISER 7.820211 SK6A2-B12EC-180-10-5-65-5°-26-V1168
DR. KAISER 7.820723 SK12F9H-B12EC-150-R1.2-15°-25°-20-25-82-V
DR. KAISER 7.821034 SK14F1H-B12EC-125-3,2/R1,6-5-20-8-100-V11
DR. KAISER K72-109-100-94-64-Geteilt
DR. KAISER NC10-C-180-1,1-3-R0,55-52-20
DR. KAISER NC20-C-114-R0,5-W50-25,4-9,53-TK
DR. KAISER NC20-C-120-R0.4-W40-40-21-TK
DR. KAISER NC20-C-130-R0,3-W28-72-10-TK
DR. KAISER NC20-C-90-R0,15-W40-14-14-TK
DR. KAISER NC21-C-110-R0,15-W28-15-15-TK
DR. KAISER NC21-C-180-R0.2-W10-52-20
DR. KAISER NC30-G-200-F3,17-R1-W10-53-20
DR. KAISER NC40-C-120-R0,4-W40-40-21-TK
